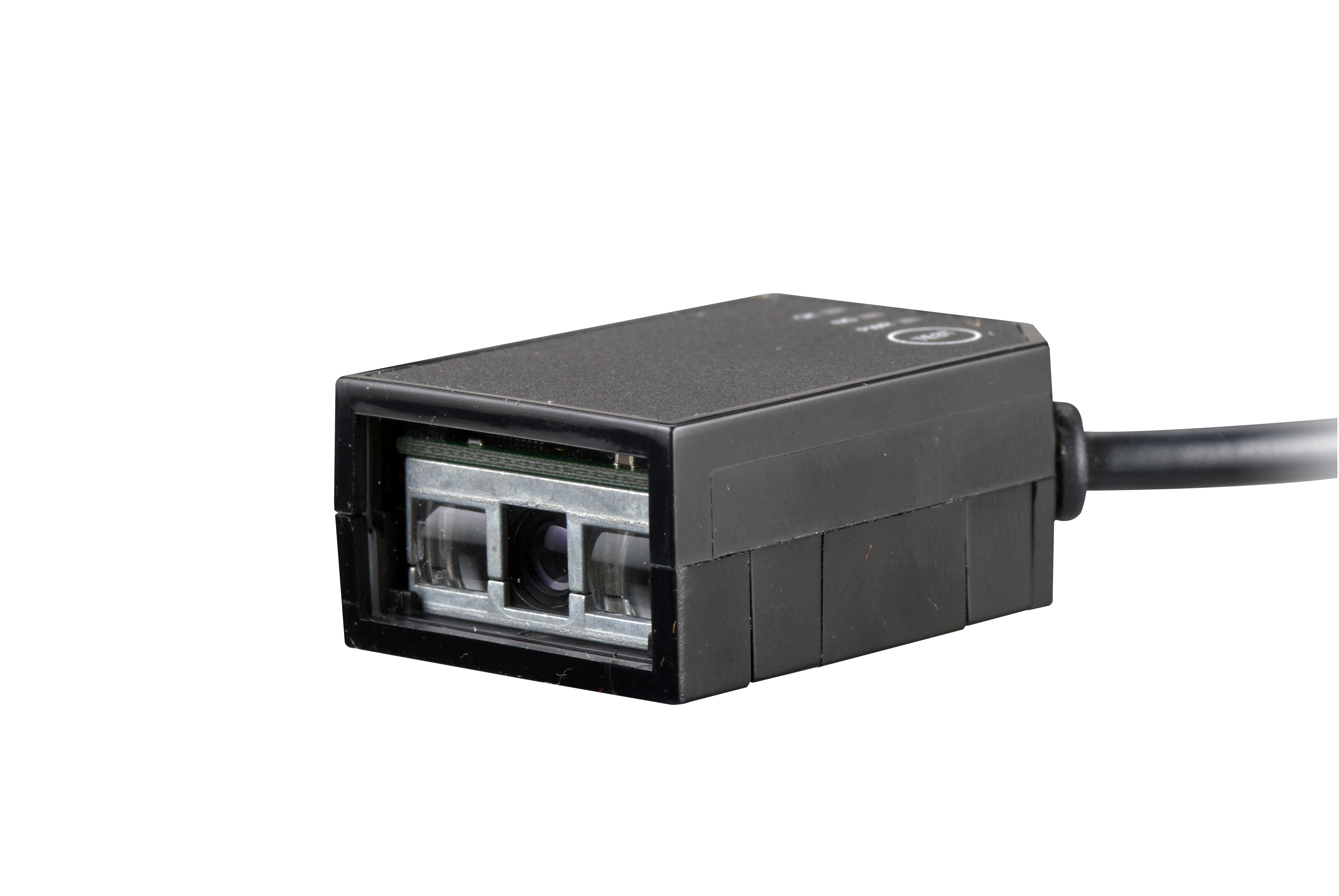

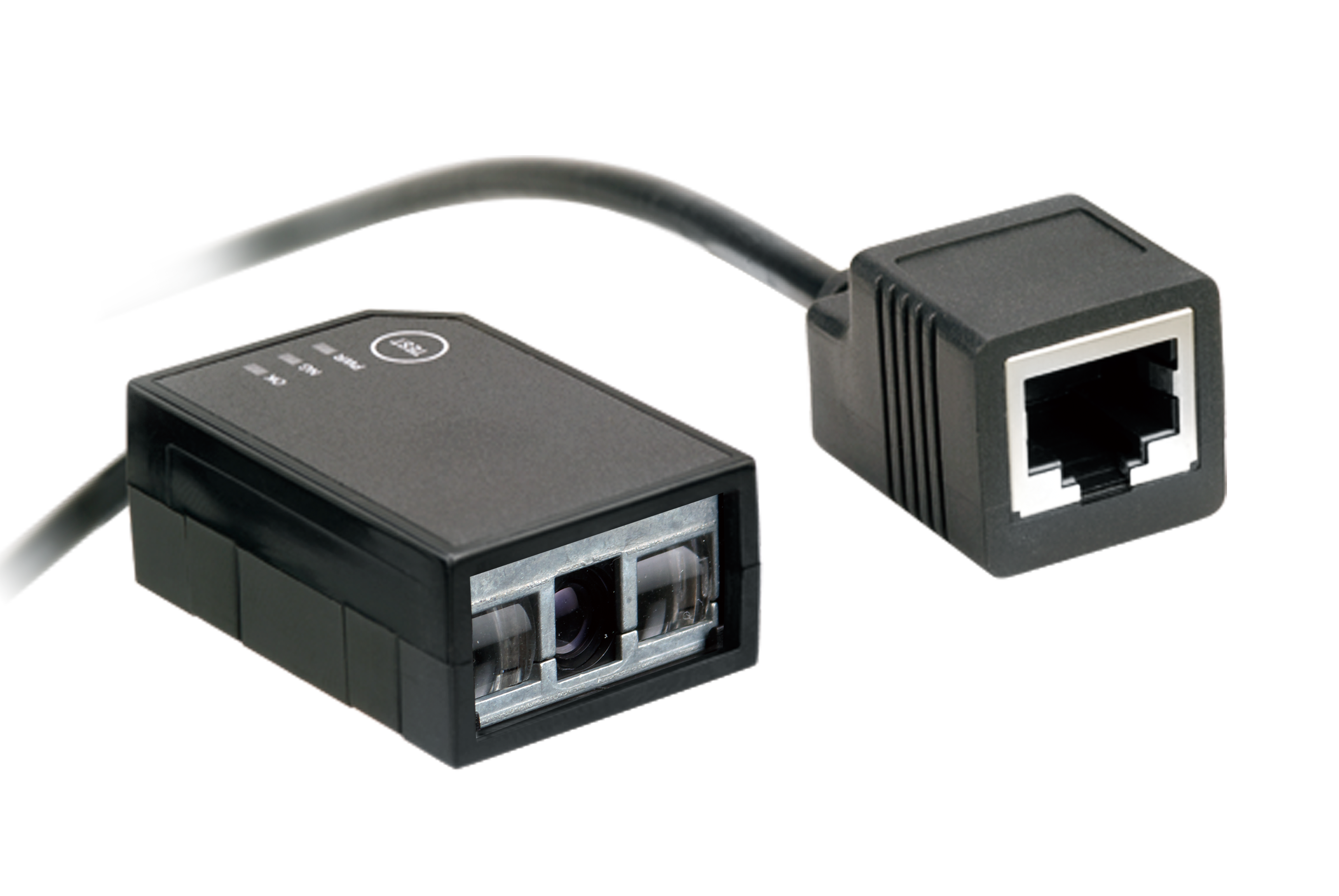

Z-5130迷你型CCD条形码扫描模块

产品简介:

Z-5130迷你型CCD条形码扫描模块
Advanced Miniature CCD Scan Module
This 15-weighted mini CCD scan module is the perfect choice of embedded scanning solution,
and its powerful high resolution CCD acts in outstanding performance.
Z-5130 has all the flexibility and future upgradeability.
• World's smallest CCD scan module

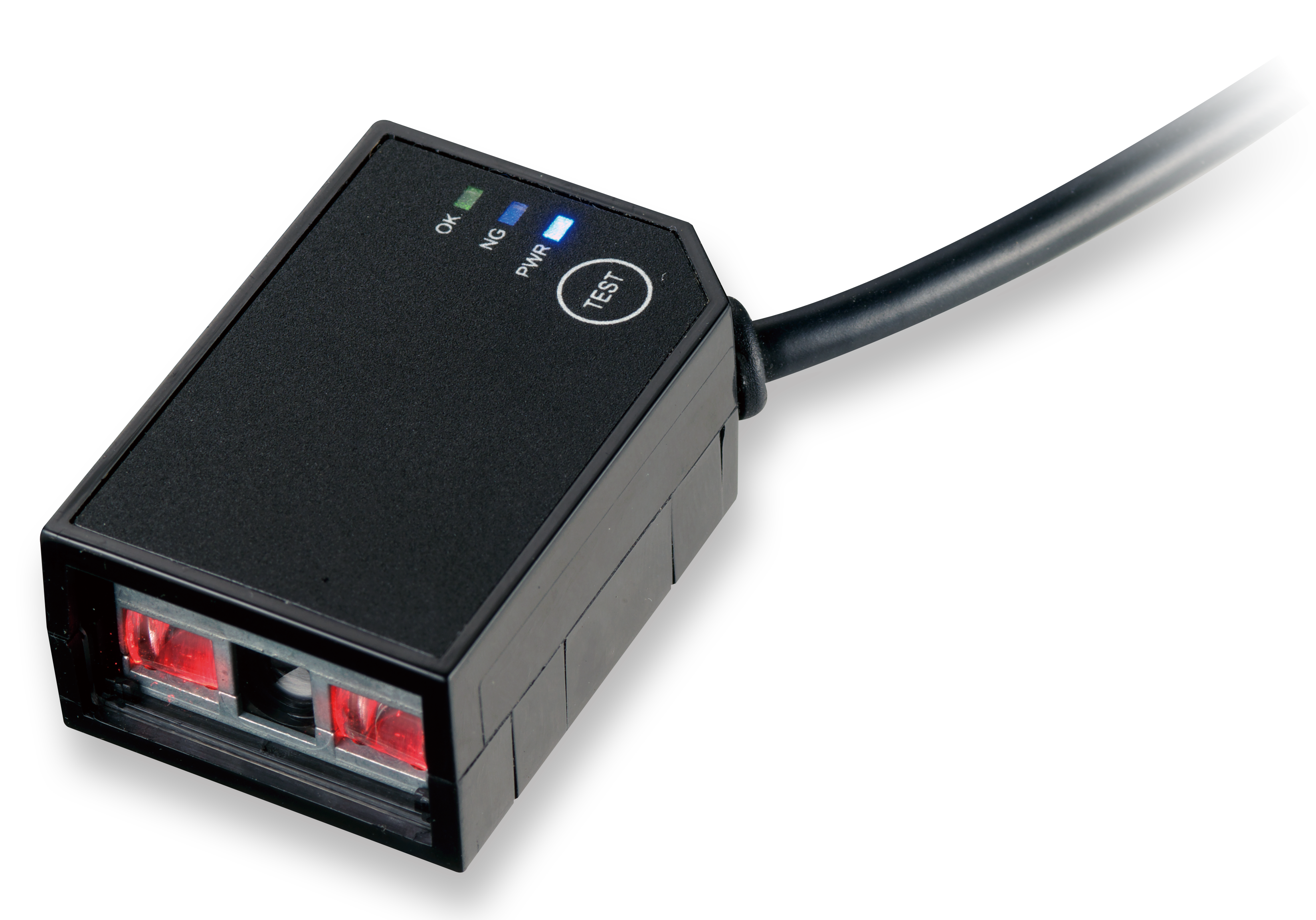

• A "test" button on top for performance testing
• Mounting holes at bottom for easy installation
• Great CCD scanning performance and future upgradeability on firmware
OPERATIONAL
Light Source
Optical System
Microprocessor
Depth of Field
Scan Rate
Minimum Bar Width
Print Contrast
Indicators (LED)
Beeper Operation
System Interfaces
617 nm visible red LED
Linear CCD array
32 bit
280 mm (EAN-13 100%, PCS=90%)
330 scans per second
0.1 mm (0.07 mm actually); (Code 39, PCS=90%)
30% @ UPC/EAN 100%
“OK”, “NG”, “PWR” and “TEST” button
Programmable tone & beep time
RS-232C, HID USB, USB – Virtual COM Port Emulation
PHYSICAL
Dimensions
Weight
Mounting
39.0 × 26.6 × 15.8 mm
15 g (cable excluded)
3-M 1.6 × 0.35 screw hole
POWER
Input Voltage
Operating Current
5 VDC ±10%
120 mA typical
REGULATORY
EMC CE & FCC DOC compliance, VCCI, BSMI
ENVIRONMENTAL



Operating Temperature
Storage Temperature
Humidity
Light Levels
0°C – 50°C (32°F – 104°F)
-20°C – 60°C (-4°F – 140°F)
20% – 95% RH (non-condensing)
0 – 100,000 Lux
